 3D Printed T-35A

View previous topic View next topic Go down
Go to page : 1, 2, 3, 4  Next
AuthorMessage
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: 3D Printed T-35A   3D Printed T-35A Icon_minitimeSat Jan 27, 2018 3:11 pm

Hello CAN-AM!
I am posting this build as I feel its not something that is being done much in the Tank Community, and I would like to show everyone what kind of results you can actually get from 3D Printing.

I would like to start by saying this does take some 3D design knowledge, however I taught myself this based my my 2D cad experience, which Im sure many here have.

The first step was creating a solid model of the tank. This process was very time consuming but made much faster thanks to access to reasonably accurate 3d models available in games. I used the T-35 Tank from war thunder as the reference for my print. Even if you do not play these games, I would recommend learning how to use the War Thunder Asset Viewer tool within their CDK. It allows you to load up any of their hundreds of models and rotate them around to look at all the bolts and wheels and such. Even some minor interior details can be observed this way.

Armed with this, I created the solid Model:
3D Printed T-35A Front10
3D Printed T-35A Perspe10
3D Printed T-35A Side10
3D Printed T-35A Top10
I will post the remainder of my progress pictures slowly as I write information to go with them.
Back to top Go down
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeSun Jan 28, 2018 12:48 pm

I should mention that all the parts are printed on a second hand MakerGear M2, save the tracks which were made on a pair of Flashforge Dreamers.
First thing I created were the tracks, I figured I would start there because If I could not print workable tracks I would have to modify the body to accept KV Tracks. One of the more tedious parts of the process, the tracks are printed as two parts, and acetone glued together. I then found some dressmakers pins and melted them into place with a soldering iron. Works nicely.
3D Printed T-35A Imag0211
There is all 4+ feet of track needed for the monster.
Next up were the road wheels, idler and drive sprockets, I have printed the wheels black so they keep looking like rubber when they wear.

3D Printed T-35A Imag0212
In total there are 16 of the road wheels, I am just using brass tube as a bearing surface.
Back to top Go down
Jarlath
Colonel
Colonel
Jarlath

Posts : 1266
Join date : 2016-06-01
Age : 46
Location : Kitchener, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeMon Jan 29, 2018 8:19 am

Are you using ABS or PLA? I ask as PLA will get softer when sitting in the sun and likely stretch and bend when under load if you are going to RC it.

What layer resolution did you do the tracks in? 100micron?
Back to top Go down
http://www.tpf-online.com
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeMon Jan 29, 2018 7:38 pm

Hello Jarlath, I am using ABS for the whole tank, and I definitely started out with the intention of RC Smile
The tracks were printed at 120 micron (different printer), the rest of the parts are either 100 or 200 depending on the level of detail required.

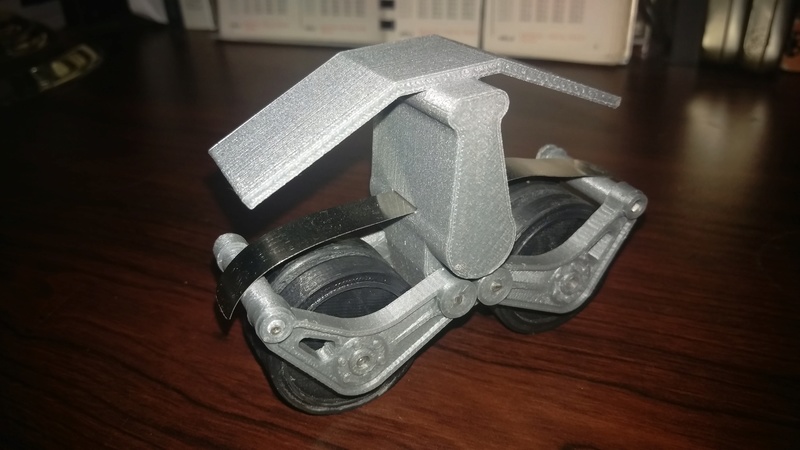

The next step was figuring out the suspension. I simplified the tank quite a bit, replacing the 4 shocks and coil springs per rotating bogie to just a piece of spring steel with static bogies. as it will be hidden under the skirts anyway. See below an image of an early prototype.
3D Printed T-35A Imag0213
After this I printed the hull out in 4 pieces and glued them together. The walls are 5mm thick, and have proven to be more than strong enough.

3D Printed T-35A Imag0214
Also visible is some putty on the rear slope, printing overhangs is quite a challenge in ABS.
The firewalls in the hull help to reduce flex, however next time I will make the wiring holes much larger.
Back to top Go down
MikeC
Lieutenant General
Lieutenant General


Posts : 1879
Join date : 2013-08-25
Location : Toronto, Ontario

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeMon Jan 29, 2018 9:13 pm

Looks splendid !
Back to top Go down
Jarlath
Colonel
Colonel
Jarlath

Posts : 1266
Join date : 2016-06-01
Age : 46
Location : Kitchener, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeMon Jan 29, 2018 9:30 pm

Makes me want to 3d my Maus even more... Tracks are the issue however... So big... for each of them
Back to top Go down
http://www.tpf-online.com
MikeC
Lieutenant General
Lieutenant General


Posts : 1879
Join date : 2013-08-25
Location : Toronto, Ontario

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeMon Jan 29, 2018 10:50 pm

Jarlath wrote:
Makes me want to 3d my Maus even more... Tracks are the issue however... So big... for each of them

Want to buy my Maus ? Not asking for a lot.
Back to top Go down
Jarlath
Colonel
Colonel
Jarlath

Posts : 1266
Join date : 2016-06-01
Age : 46
Location : Kitchener, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeTue Jan 30, 2018 9:14 am

Laugh. You forgot that I bought a Juckenburg Kit as well for research and dims?

PM me your asking price, cause I'm poor after Las Vegas... Or maybe we can work out a deal (recoil kits?) Smile
Back to top Go down
http://www.tpf-online.com
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeWed Jan 31, 2018 9:15 pm

As for printing a Maus, I can imagine working on the tracks and suspension would be a bear. The tracks on this are covered but the Maus they are even more so. At least the body is geometrically simple on it!
More progress pictures to share. At this stage I had printed the frame that holds the return rollers and the skirts, and mounted the motors.
I will describe what the tank is using for electronics when I catch up to present date on these posts.
3D Printed T-35A Imag0216

The rollers were just fudged on with tape and were unsanded, it was rough, but here is a video of some early movement.
https://drive.google.com/file/d/1eusdzzvuF1bvpeHilOKZvsjw-VJel6GT/view?usp=sharing  no avatars or links? You guys are rough on the newbies!
Back to top Go down
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeWed Feb 07, 2018 7:55 pm

Here is another shot with more progress, this time beside my PZ III end to end for scale.
3D Printed T-35A Imag0217
Back to top Go down
Negaduck
Second Lieutenant
Second Lieutenant
Negaduck

Posts : 637
Join date : 2013-01-03
Age : 35
Location : Pickering Ontario

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeWed Feb 07, 2018 8:05 pm

dam thats going to be something to see

_____________________________________________
I do things in the name of science but first hold my beer
Back to top Go down
Jarlath
Colonel
Colonel
Jarlath

Posts : 1266
Join date : 2016-06-01
Age : 46
Location : Kitchener, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeWed Feb 07, 2018 9:41 pm

What slicer are you using?
Infill %? Standard Infill pattern?
Back to top Go down
http://www.tpf-online.com
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeThu Feb 08, 2018 8:45 pm

Jarlath, I am using Simplify 3D, with a 20 or 40% triangular infill based on if it is a structural part or not. The exception being the motor sleds, which were printed at 80% because the first versions broke on me. These serve a dual purpose, allowing me to angle the standard HL motors to fit in the sloping rear end and to move the motors back and fourth to allow for track tension adjustment.

Here the next stage of the build, adding the track guards, upper hull and engine deck details.
at this point I also had installed a prototype cooling fan and the TARR smoke unit.
3D Printed T-35A Imag03103D Printed T-35A Imag0311
Back to top Go down
Jarlath
Colonel
Colonel
Jarlath

Posts : 1266
Join date : 2016-06-01
Age : 46
Location : Kitchener, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeFri Feb 09, 2018 12:16 am

Cool. I use Simplify 3D too. Such a fast slicer...

The hull looks so nice and smooth. You acetone slurrying the surfaces?
Back to top Go down
http://www.tpf-online.com
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeFri Feb 09, 2018 12:21 am

Only parts that have been acetone treated are the side skirts, but you have not seen them yet.

Any other really smooth surfaces are the result of being face down on the glass print bed, like the track guard tops.
Back to top Go down
MikeC
Lieutenant General
Lieutenant General


Posts : 1879
Join date : 2013-08-25
Location : Toronto, Ontario

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeFri Feb 09, 2018 11:42 am

Nice details. Is there interior shots ?
Back to top Go down
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeFri Feb 09, 2018 11:47 am

I will post a shot of the inside later, but I am hesitant. The wiring looks as bad as the outside looks good.
Back to top Go down
Jarlath
Colonel
Colonel
Jarlath

Posts : 1266
Join date : 2016-06-01
Age : 46
Location : Kitchener, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeFri Feb 09, 2018 11:47 pm

Ahhh. I'm usually the opposite.. Nice neat (borderline OCD) wiring and horrible exterior details.
Back to top Go down
http://www.tpf-online.com
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeSat Feb 10, 2018 9:49 am

I would have no issue making the wires pretty if I did not have the thing apart 3 times a week while working on it, so I have the wires really long to move pieces right now. Later I will do plugs on every wire to solve this.
Here are some shots of the stage of testing out the turret rotations. I have the 2 secondary turrets simply bolted to some servos under them, they follow the position of the analog knobs on my transmitter. The elevation of the secondaries and the rotation of the MG turrets are "manual" tongue
The main turret uses a modified servo with a big turret ring gear to do continuous slow rotation on a slip ring. Only the main turret has elevation and recoil servos, because I could not control the additional 4 servos needed to do all 3.
I should also mention the headlights, they are warm white COB LEDs
https://www.aliexpress.com/item/100pcs-a-Lot-0-5W-Watt-70-80LM-High-Power-LED-Light-Diodes-LED-Bulb-Chip/32794987448.html?spm=a2g0s.9042311.0.0.u5CkFi
These suckers heat up, so I had to current limit them a bit more, but they are crazy bright and glow more like an incandescent then the blue you get on the standard HL tanks.

3D Printed T-35A Imag0312
3D Printed T-35A Imag0313
Back to top Go down
MikeC
Lieutenant General
Lieutenant General


Posts : 1879
Join date : 2013-08-25
Location : Toronto, Ontario

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeSat Feb 10, 2018 10:08 am

Awesome. Love it. Do you have something scale next to it so we can have a sense of the actual size ? Still would like to see the inner workings (suspension, wiring etc).
Back to top Go down
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeSat Feb 10, 2018 10:13 am

Hello Mike, You can see the suspension and the hull next to a PZIII in the pictures above.
Back to top Go down
MikeC
Lieutenant General
Lieutenant General


Posts : 1879
Join date : 2013-08-25
Location : Toronto, Ontario

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeSat Feb 10, 2018 10:32 am

Oh crap missed that post thanks !
Back to top Go down
Shoveler74
Corporal
Corporal
Shoveler74

Posts : 203
Join date : 2017-03-23
Age : 44
Location : Java, New York

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeSat Feb 10, 2018 9:37 pm

Gotta love those Russians and their beasts! Great job!

_____________________________________________
[b]You may be a king or a little street sweeper, but sooner or later you dance with the reaper! - Death[/b]
Back to top Go down
MikeC
Lieutenant General
Lieutenant General


Posts : 1879
Join date : 2013-08-25
Location : Toronto, Ontario

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeSun Feb 11, 2018 10:55 pm

Dean, you okay if I post some of your pictures on the UK forum ? Boys would love it there.
Back to top Go down
Dean R
Private
Dean R

Posts : 47
Join date : 2018-01-27
Age : 23
Location : Oshawa, ON

3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitimeMon Feb 12, 2018 12:08 am

Sure, I will soon have this page up to date if you want to wait a bit.
Currently everything is on minus the tools, and im looking to paint.
I will also do some shameful internal shots and describe what hardware im using.
Back to top Go down
Sponsored content




3D Printed T-35A Empty
PostSubject: Re: 3D Printed T-35A   3D Printed T-35A Icon_minitime

Back to top Go down


3D Printed T-35A

View previous topic View next topic Back to top
Page 1 of 4Go to page : 1, 2, 3, 4  Next

Permissions in this forum:You cannot reply to topics in this forum
Can-Am RC Tank Club :: The Motor Pool (Builder's Section) :: WWII Allies-
