 Barrel Mounted IR Emitter Attachment System???

View previous topic View next topic Go down
AuthorMessage
Glen B
Major General
Major General
Glen B

Posts : 1794
Join date : 2012-03-22
Age : 67
Location : Fort Erie, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeThu Aug 09, 2012 9:04 pm

I am trying to come up with the best IR Emitter mount for tanks the need to have the Emitter clipped or strapped to the barrel.

The idea is to have something that is easily attached and removed, that doesn't mark up the paint on the barrel.

I will come up with something, but am not too proud to ask for some ideas. Wink

_____________________________________________
"Luck favours the prepared!."
Back to top Go down
Stince
General
General
Stince

Posts : 2285
Join date : 2012-03-21
Age : 45
Location : Windsor, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeFri Aug 10, 2012 3:38 pm

Glen, I don't know how well it will work for you, but for the camera I use during the battles I hold i it on with sticky tack.
I can move it from tank to tank without damaging the paint. And it even stay on when I roll the tank! Very Happy


Barrel Mounted IR Emitter Attachment System??? 5F100C

_____________________________________________
HL Panzer III   |   HL Tiger   |   HL Jagdpanther   |   HL Panther   |   Mato Sherman
Hooben Elefant   |   HL Pershing   |   HL Bergepanzer IV   |   Tamiya Leopard 1A   |   WSN T-34
HL "Golden" Pan-Tiger   |   M16 Halftrack   |   HL Panzer IV   |   Tamiya KV-1   |   Tamiya Tiger
Back to top Go down
https://can-amrctankclub.canadian-forum.com
Glen B
Major General
Major General
Glen B

Posts : 1794
Join date : 2012-03-22
Age : 67
Location : Fort Erie, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeFri Aug 10, 2012 7:56 pm

Stince

That is brilliant, quite simple along with "thinking outside the box"

I have tested it a bit this evening, I have to add a few features to the mount but I think it will work quite well, pictures will follow over the next couple days.

We'll call it the Stince IR Emitter Adapter Wink

_____________________________________________
"Luck favours the prepared!."
Back to top Go down
Glen B
Major General
Major General
Glen B

Posts : 1794
Join date : 2012-03-22
Age : 67
Location : Fort Erie, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeFri Aug 10, 2012 8:44 pm

There was a problem with the emitter tube twisting side to side since the putty twists.

This cam be stopped using a segment of a small PVC pipe as a saddle with the putty under it.

Barrel Mounted IR Emitter Attachment System??? Img_0711

Then use Miliput to mount the tube carrying the emitter to the correct height to clear the muzzle break,

Barrel Mounted IR Emitter Attachment System??? Img_0712

Once the Miliput sets, I will smooth it out, install the emitter in the tube, then paint it to match the KT so it doesn't stand out QUITE so bad.

_____________________________________________
"Luck favours the prepared!."
Back to top Go down
Glen B
Major General
Major General
Glen B

Posts : 1794
Join date : 2012-03-22
Age : 67
Location : Fort Erie, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 8:58 am

Progress as of 09:00 this morning;

Housing, made of Easton No. 1916 arrow shaft;

Barrel Mounted IR Emitter Attachment System??? Img_0714

Rear, inner housing, slit to allow it to go over the wires;

Barrel Mounted IR Emitter Attachment System??? Img_0715

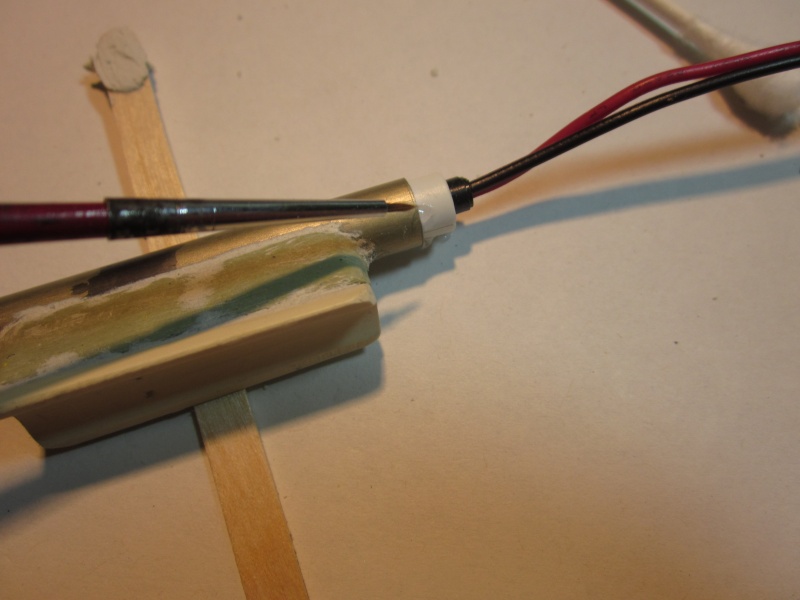

Glueing the rear, inner housing in, with three drops of Super Glue, this will hold it but these could be cut, it dissassembly was ever needed;

[code]Barrel Mounted IR Emitter Attachment System??? Img_0716

Depth check, this was done initially when the parts were being made up;



Barrel Mounted IR Emitter Attachment System??? Img_0717

_____________________________________________
"Luck favours the prepared!."
Back to top Go down
Glen B
Major General
Major General
Glen B

Posts : 1794
Join date : 2012-03-22
Age : 67
Location : Fort Erie, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 12:46 pm

Paint is on, first coat of clear coat.

Plug and last 3/8 inch of wire has been masked sot I can still tell the red & black wires apart.

Barrel Mounted IR Emitter Attachment System??? Img_0718

_____________________________________________
"Luck favours the prepared!."
Back to top Go down
Stince
General
General
Stince

Posts : 2285
Join date : 2012-03-21
Age : 45
Location : Windsor, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 1:47 pm

Glen B wrote:
Stince

That is brilliant, quite simple along with "thinking outside the box"

I have tested it a bit this evening, I have to add a few features to the mount but I think it will work quite well, pictures will follow over the next couple days.

We'll call it the Stince IR Emitter Adapter Wink

Thanks Glen but I can't take all the credit. I got the idea from one of Tim's tanks, he was using to hold the cap on he made for his sensor.
I'm glad you like the idea, your emitter is looking good! But I thought you were going to use this on your Jagdpanther?

_____________________________________________
HL Panzer III   |   HL Tiger   |   HL Jagdpanther   |   HL Panther   |   Mato Sherman
Hooben Elefant   |   HL Pershing   |   HL Bergepanzer IV   |   Tamiya Leopard 1A   |   WSN T-34
HL "Golden" Pan-Tiger   |   M16 Halftrack   |   HL Panzer IV   |   Tamiya KV-1   |   Tamiya Tiger
Back to top Go down
https://can-amrctankclub.canadian-forum.com
Glen B
Major General
Major General
Glen B

Posts : 1794
Join date : 2012-03-22
Age : 67
Location : Fort Erie, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 2:11 pm

I guess then it is a TSAPE Unit....................................Tim-Stince Amazing Pan-Tiger Eliminatorl Unit Twisted Evil

This is a "dry run" for the Jagdpanther installation, with some added benefit.

The KT's turret does not allow for an emitter installation that tracks the gun elevation, at least without really mutilating it.

Consequently, my KT's emitter is fixed in the horizontal position in the no moving mantlet. This usually isn't too much of a problem but this will give "Anneliese" the option of operating with the internal emitter in the turret, or with a barrel mounted emitter; just depends which one you plug in.

This will be useful and provide some experience before I start my JP project when the next batch of SLU's arrive this fall.

When the clear coat is fully cured, I will post some picture with it on the KT.


_____________________________________________
"Luck favours the prepared!."


Last edited by Glen B on Sat Aug 11, 2012 7:30 pm; edited 1 time in total
Back to top Go down
Stinger
Captain
Captain
Stinger

Posts : 949
Join date : 2012-06-10
Location : Niagara

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 2:27 pm

You can also use two pieces of PVC that are glued together. The bottom section has a notch cut into it, so that it will expand slightly to give snug fit. No it doesn't move at all.

Have a look

Stinger

Barrel Mounted IR Emitter Attachment System??? Img_2310

_____________________________________________
My Tanks <<== Click here

Can-Am Tank Club <<< Web site link



Tiger I | King Tiger | Panther G | PzIII | PzIV | Stug IV | SturmTiger | Pershing/Howitzer | M16 Halftrack | M26 Super Pershing | M48 Patton | M41 Bulldog | Gepard | Leopard | KV-1 | KV-2 |T-34 |
Back to top Go down
http://canamtankclub.homestead.com/Member2.html
Glen B
Major General
Major General
Glen B

Posts : 1794
Join date : 2012-03-22
Age : 67
Location : Fort Erie, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 2:58 pm

Thanks.

I was wondering if that would scratch up the paint on the barrel if it is installed and removed, repeatedly.

_____________________________________________
"Luck favours the prepared!."
Back to top Go down
Stinger
Captain
Captain
Stinger

Posts : 949
Join date : 2012-06-10
Location : Niagara

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 3:19 pm

There really is no reason to remove it at all. IR bulbs lasts for 1,000 of hours and I have removed it several times without issue. If you at all concerned, a lil bit of Lube of Grease first but no scratches have happened to me thus far.

Stinger

_____________________________________________
My Tanks <<== Click here

Can-Am Tank Club <<< Web site link



Tiger I | King Tiger | Panther G | PzIII | PzIV | Stug IV | SturmTiger | Pershing/Howitzer | M16 Halftrack | M26 Super Pershing | M48 Patton | M41 Bulldog | Gepard | Leopard | KV-1 | KV-2 |T-34 |
Back to top Go down
http://canamtankclub.homestead.com/Member2.html
Glen B
Major General
Major General
Glen B

Posts : 1794
Join date : 2012-03-22
Age : 67
Location : Fort Erie, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 3:29 pm

Stinger wrote:
There really is no reason to remove it at all.

Stinger

Unless you're eccentric like me Wink and want to display them without the attachment on the barrel.

_____________________________________________
"Luck favours the prepared!."
Back to top Go down
Glen B
Major General
Major General
Glen B

Posts : 1794
Join date : 2012-03-22
Age : 67
Location : Fort Erie, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 4:30 pm

I present the TSAPE Unit....................................Tim-Stince Amazing Pan-Tiger Eliminator Unit

Barrel Mounted IR Emitter Attachment System??? Img_0719


Barrel Mounted IR Emitter Attachment System??? Img_0720

Barrel Mounted IR Emitter Attachment System??? Img_0721

_____________________________________________
"Luck favours the prepared!."
Back to top Go down
Stince
General
General
Stince

Posts : 2285
Join date : 2012-03-21
Age : 45
Location : Windsor, Ontario

Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitimeSat Aug 11, 2012 9:57 pm

Looks good Glen!


Now you need is a cover for the sensor. Very Happy
The clear plastic bottom from a super glue bottle works well. Just have to cut it down a bit and dress it up with some paint. It's a nice way to protect it.

Barrel Mounted IR Emitter Attachment System??? Cobra-39

_____________________________________________
HL Panzer III   |   HL Tiger   |   HL Jagdpanther   |   HL Panther   |   Mato Sherman
Hooben Elefant   |   HL Pershing   |   HL Bergepanzer IV   |   Tamiya Leopard 1A   |   WSN T-34
HL "Golden" Pan-Tiger   |   M16 Halftrack   |   HL Panzer IV   |   Tamiya KV-1   |   Tamiya Tiger
Back to top Go down
https://can-amrctankclub.canadian-forum.com
Sponsored content




Barrel Mounted IR Emitter Attachment System??? Empty
PostSubject: Re: Barrel Mounted IR Emitter Attachment System???   Barrel Mounted IR Emitter Attachment System??? Icon_minitime

Back to top Go down


Barrel Mounted IR Emitter Attachment System???

View previous topic View next topic Back to top
Page 1 of 1

Permissions in this forum:You cannot reply to topics in this forum
Can-Am RC Tank Club :: Assembly Area :: Tips & Technical Support-
