PostSubject: Rebuilding the PZIV   Rebuilding the PZIV Icon_minitimeWed Jul 11, 2018 10:17 am

As you may or may not have noticed at Aquino... My eldest broke my Panzer IV's turret skirt armour, Schürzen (dastardly Evil children!).
It also stopped working for them with no explanation... (I had thought that I may have fried the Clark board in it). It had the magnetic upper hull mods, but still had the bottom access battery box. Since it was in for repair... Time for a Big Mike, reworking!

Ripped out pretty much everything except the motors. I did however drill through and bolt down one motor base as it was extremely easy to flex (stripped motor screw to lower hull).
Cut out the battery box, except for the front most panel. Put in the fire wall using the remaining portion of the battery box.
Added in a 3/8 square tube hull brace to the front firewall.
Glued the old battery cover in place, and resin filled the entire rear compartment to a roughly flush level.
Adding in a wood base for the clark board and acts as a battery stop.
Reused the old speaker in the exact same location.
Side mounted the receiver (Through holes along side posts to allow passage)
Added a fan above the Clark FET's, powered by the receiver
Secondary brace/battery guide and new power switch
Did I mention Wiring cleanup? Smile

Rebuilding the PZIV Rimg0314
So the general overview of the finished PZ IV lower hull.

Rebuilding the PZIV Rimg0313
The wooden base for the Clark. Smile Double sided tape on the bottom of the HL MFU case half (Surrounding the Clark)

Rebuilding the PZIV Rimg0315

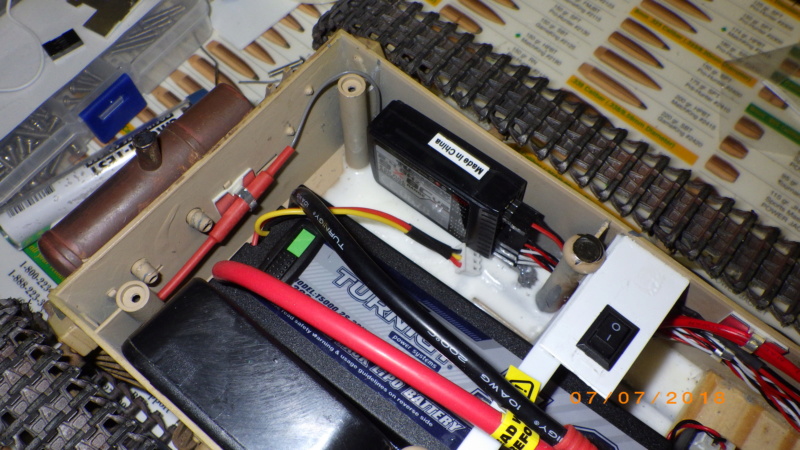

Receiver and antenna placement in the lower hull

Rebuilding the PZIV Rimg0317

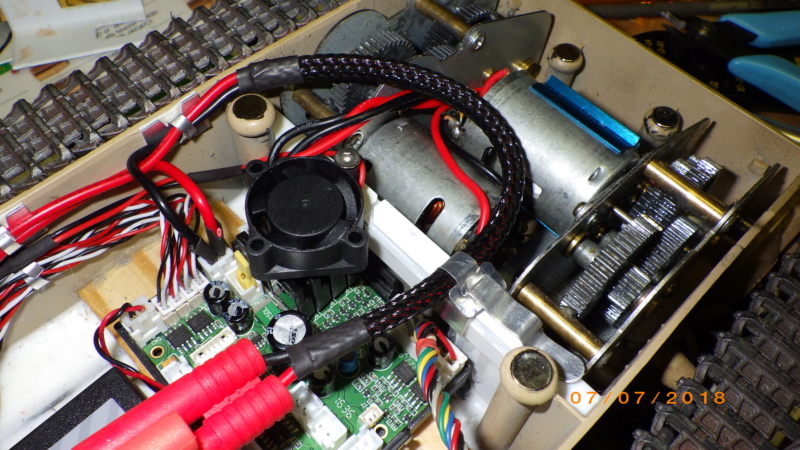

The Fan above the FET's. I checked the board after and everything worked... Maybe the old power switch failed?

Rebuilding the PZIV Rimg0318

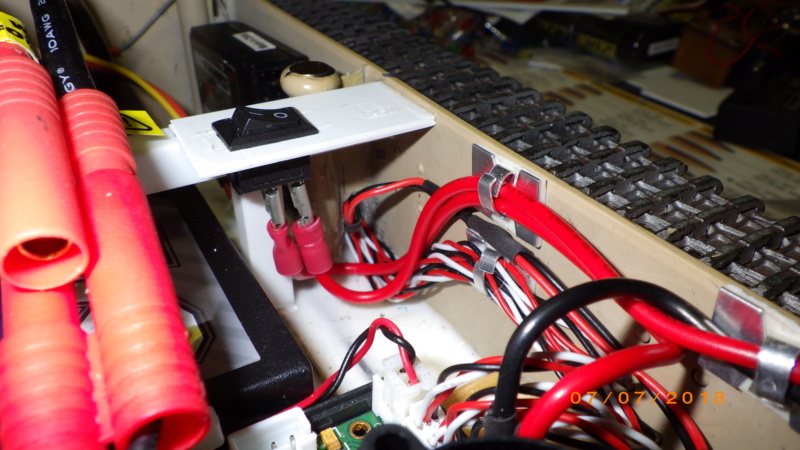

Wiring clean up in lower hull. Yes those are crimped connectors, in case I have to remove the switch... Soldering in such a small tight space would be a Pita!

Rebuilding the PZIV Rimg0316
Side shot showing the overall height of the components in the lower. There is an additional 15+mm above the lower hull edge internally, so lots of space vertically...

Rebuilding the PZIV Rimg0319
Shot from the front. Could only fit one motor Heat Sink on, but it will have to do.
Back to top Go down
http://www.tpf-online.com
Jarlath
Field Marshal
Field Marshal
Jarlath

Posts : 2436
Join date : 2016-06-01
Age : 51
Location : Kitchener, ON

Rebuilding the PZIV Empty
PostSubject: Re: Rebuilding the PZIV   Rebuilding the PZIV Icon_minitimeThu Jul 12, 2018 8:40 pm

Next... Upper hull work....

Since the hatches and magnets were already in place, I decided to remove some looseness in the wires and correct opening and closing smoothness..

Rebuilding the PZIV Rimg0323
Upper hull in place with front hatches removed for re-install later.

Rebuilding the PZIV Rimg0324
Rear hatches re-installed and curing the CA...

Rebuilding the PZIV Rimg0322
Other side of tank.

Rebuilding the PZIV Rimg0321
Clean up of the upper hull. Build up of the 8 pin connector and added the red JST connector for the elevation motor (Opposed to the two single Futaba pins on the rear 3 x 3 board).

Rebuilding the PZIV Rimg0320
Rotation unit only had 2 mounting screws due to the deck removal for the hatches, so I fabricated a nice study lip and bolted it in place with a 2mm bolt.

Rebuilding the PZIV Rimg0325
New location for the 8 pin connector board. Off to the side and a LOT of spare cable for upper hull service.

Rebuilding the PZIV Rimg0326
High Temp Glue Gun = Nice tight wiring on the hull.

Rebuilding the PZIV Rimg0327
Showing the stacked plastic buildup to ensure clearance from the rotation gear ring. Don't want any chewed wires...

Rebuilding the PZIV Rimg0328
Rearward image. Battery installed and 50% hooked up. Lots of clearance for a rotating turret.

Rebuilding the PZIV Rimg0328
Now showing a forwards image of the turret ring in place. Fan over the Clark FETs.

Rebuilding the PZIV Rimg0330
Front Hatches awaiting curing of CA

Rebuilding the PZIV Rimg0331
I'm not bothering with painting the inside of the hatches... Smile

Rebuilding the PZIV Rimg0332
All front hatches open...
